SPC series plunger synchronous motor

简单描述:

Performance characteristics Theplunger-type shunt motor is composed of a radial plunger motor. The structure is simpler and the design is more reliable. It is mainly used in occasions that require high synchronization accuracy.Compared with gear-type shunt motors, its main features are:Ø High

铲斗容量:
工作装置:
轨道长度:
离地间隙:
底盘宽度:
轨道宽度:
运输长度:

发送邮件下载PDF

产品详情

产品标签

Performance characteristics The
plunger-type shunt motor is composed of a radial plunger motor. The structure is simpler and the design is more reliable. It is mainly used in occasions that require high synchronization accuracy. Compared with gear-type shunt motors, its main features are:
Ø High synchronization accuracy. Even when there is a high pressure difference between the working pieces, high synchronization accuracy can be achieved.
Ø The RPC series adopts a cast iron shell and a corresponding seal, which can be used for non-mineral oil media.
Ø Adequate internal lubrication, extremely low noise, used in low-noise occasions.
Ø Low starting speed, small system impact, long life, reasonable selection.

Models and specifications

model	Displacement	Minimum flow	Maximum flow	Minimum speed	Maximum speed	Rated working pressure P1	Peak pressure P2	Maximum pressure difference between working pieces	Single-flow housing oil filling capacity	Single stream weight
	ml/rev	l/min	l/min	rpm	rpm	bar	bar	bar	L	kg
SPC1·100	99	5	54.4	50	550	250	300	250	1	27
SPC1·175	172	8.6	94.6	50	550	250	300	175	1	27
SPC2·300	304	15.2	152.0	50	500	250	300	175	2	51
SPC2·500	493	24.7	225.0	50	450	250	300	120	2	51
SPC3·800	792	34.5	316.0	50	400	250	300	130	4.5	86
SPC5·1600	1634	81.7	408.5	50	250	250	300	145	10	170
SPC6·2100	2127	106.4	477.2	50	225	250	300	160	25	240
SPCD1·100	99	5	34.7	50	350	250	300	200	1	35
SPCD1·175	172	8.6	94.6	50	550	250	300	200	1	35
SPCD1·250	243	12.2	85.1	50	550	250	300	200	1	35
SPCD1·320	314	15.7	109.9	50	550	250	300	200	1	35
SPCD2·250	251	12.6	87.9	50	500	250	300	200	2	53
SPCD2·350	347	17.4	160.0	50	500	250	300	200	2	53
SPCD2·500	493	24.7	172.6	50	450	250	300	200	2	53
SPCD2·630	623	31.2	218.1	50	350	250	280	165	2	53

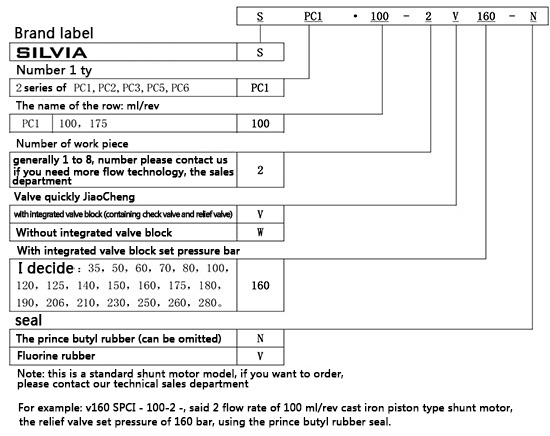

Shunt motor order

Performance characteristics: The plunger type split flow motor is composed of a combination of radial plunger motors, with a simpler structure and more reliable design. It is mainly used in situations where high synchronization accuracy is required. Compared with gear type shunt motors, its main characteristics are: synchronization accuracy
